Ice cube machine 104Kg/24h (water)

REF : IM-100WNE(G60)

Cube Ice Maker 104Kg/24h (water). Storage bin of 50Kg. Ice cube size LxWxH: 28x28x32mm. Overall dimensions of the machine without feet L.704 x W.506 x H.1200mm. Water cooling. Gas type R134a.
Request a quote

local_shipping

Free shipping under certain conditions.

info_outline
headset_mic

After-sales service throughout France

info_outline
settings

Preventive maintenance possible

info_outline
See all features

Any questions?
We will be happy to advise you.

Be contacted about this product

Our product advantages

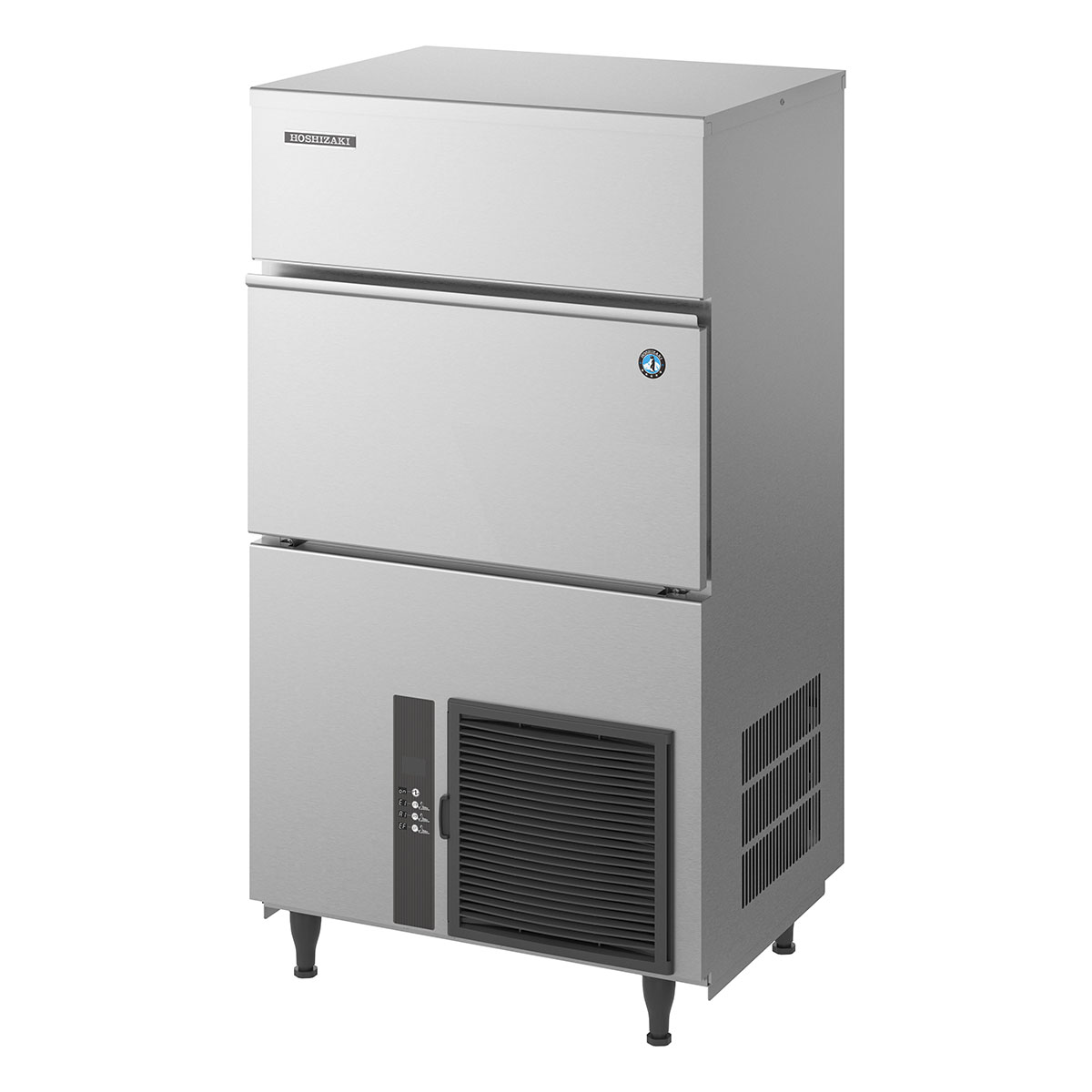

This ice machine from the brand HOSHIZAKI, model IM-100WNE(G60), is capable of producing cube-shaped ice with dimensions of 28x28x32mm and a production capacity of 104Kg/24h. It has a 50Kg storage bin.

This machine operates with a water-cooled condenser. Air cooling differs from water cooling in that it uses air circulation to cool the condenser. In the case of an air cooler, it's important to ensure the room is well-ventilated to function properly. For water-cooled condensers, it is essential to connect them to a closed-loop chilled water circuit. Nowadays, operating a water-cooled condenser machine on a waste water system is not responsible.

The refrigerant used is R134a. It is important to prioritize choosing a machine with R-290, which is more environmentally friendly than other gases.

The machine is delivered with its inlet and outlet hoses.

Feet not included in the machine's dimensions are delivered separately.

During installation, since the machine drains by gravity, ensure that the designated drainage is lower than the machine.

We recommend installing a filter for the water supplied to the ice machine.

Features

Width
704
Depth
506
Height
1200
Gross weight
84
Ice storage capacity in kg
50
Type of ice cubes
Cubes
Width x Depth x Height of the ice cube in mm
28x28x32
Tension (v)
240
See all features

You might also like

Our product benefits

This ice machine from the HOSHIZAKI brand, reference IM-100WNE(G60), can produce cube ice of size 28x28x32mm with a production capacity of 104Kg/24h. 50Kg storage bin.

This machine operates with a water-cooled condenser. Air cooling is distinguished from water cooling by the fact that it is air circulation that cools the condenser. In the case of an air cooler, it is important to ensure that the area is well ventilated to operate properly. For water-cooled condensers, it is essential to connect them to a chilled water circuit operating in a closed loop. Today, operating a water-cooled condenser machine on a lost water supply is not responsible.

The refrigerant used is R134a. It is important to prioritize choosing a machine with R-290, which is more environmentally friendly than other gases.

The machine is delivered with its inlet hose and drain hose.

Feet not included in the machine's dimensions are delivered additionally.

During installation, since the machine drains by gravity, it is essential to ensure that the planned drain is lower than the machine.

We recommend installing a filter on the water intended to supply the ice machine.
