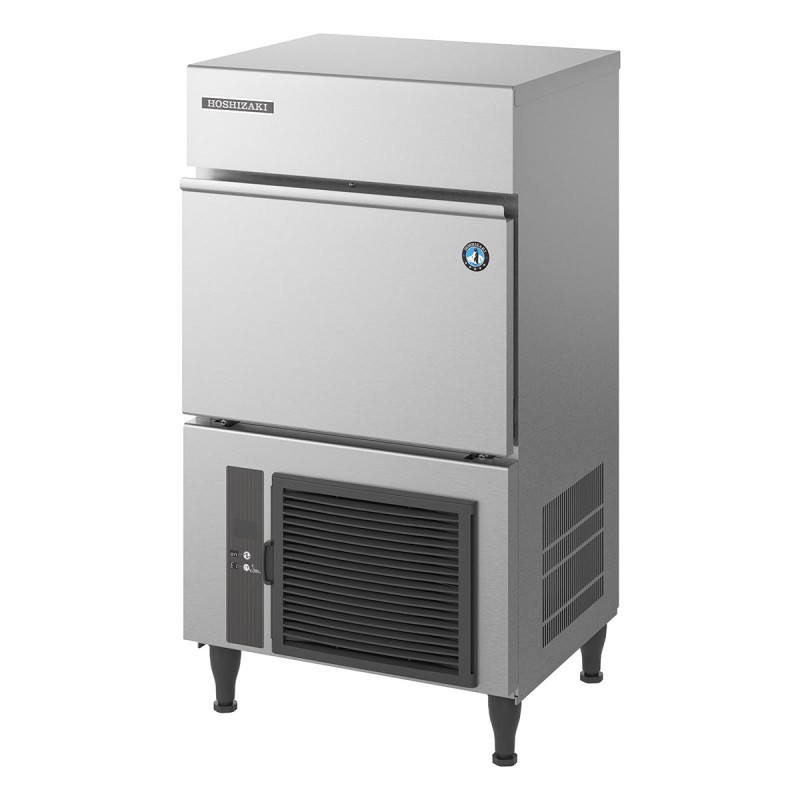

Cube ice machine 47Kg/24h (air)

This ice machine from the brand HOSHIZAKI, model IM-45PE, allows for the production of cube ice with dimensions of 28x28x32mm and has a production capacity of 47Kg/24h. It includes an 18Kg storage bin.

This machine operates with an air condenser. Air cooling is distinguished from water cooling by the fact that it uses air circulation to cool the condenser. In the case of an air cooler, it is important to ensure that the room is well-ventilated to function properly. For water condensers, it is essential to connect them to a chilled water circuit operating in a closed loop. Nowadays, operating a water condenser machine on wasted water is not responsible.

The refrigerant used is R-290. It is important to prioritize choosing a machine using R-290, which is more environmentally friendly than other gases.

The machine comes with its supply hose and its drainage hose.

Feet that are not included in the machine's dimensions are delivered additionally.

During installation, since the machine's drainage operates by gravity, it is important to ensure that the planned drainage is lower than the machine.

We recommend installing a filter on the water intended to supply the ice machine.
