Cube ice maker 97Kg/24h (water)

Name: Cube ice maker 97Kg/24h (water)
Brand: HOSHIZAKI
SKU: IM-100WNE
Availability: PreOrder

REF : IM-100WNE

Cube Ice Maker 97Kg/24h (water). Storage bin of 50Kg. Cube size LxDxH: 28x28x32mm. Overall dimensions of the machine without feet L.704 x D.506 x H.1200mm. Water-cooled. Gas type R134a.

Request a quote

local_shipping

Free shipping under certain conditions.

info_outline

headset_mic

After-sales service throughout France

info_outline

settings

Preventive maintenance possible

info_outline

See all features

Any questions?
We will be happy to advise you.

Be contacted about this product

Our product advantages

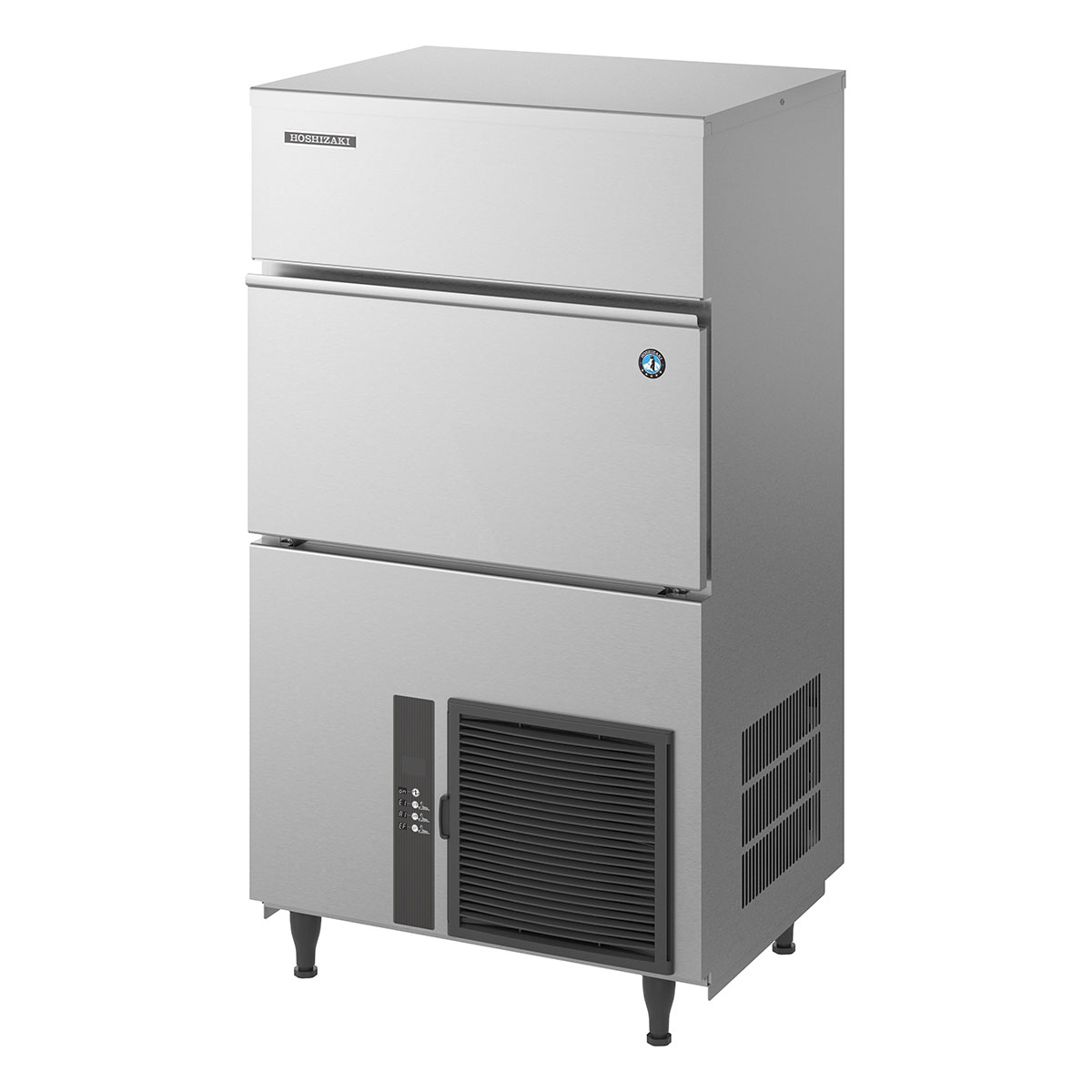

This ice machine by the brand HOSHIZAKI, model IM-100WNE, produces cube-shaped ice measuring 28x28x32mm with a production capacity of 97Kg/24h. It has a 50Kg storage bin.

This machine operates with a water-cooled condenser. Air cooling is different from water cooling in that it uses air circulation to cool the condenser. In the case of an air-cooled unit, it is important to ensure that the area is well-ventilated for proper operation. For water-cooled condensers, it is essential to connect them to a closed-loop chilled water circuit. Nowadays, running a water-cooled machine on a single-pass water system is not responsible.

The refrigerant used is R134a. It is important to opt for a machine using R-290, which is more environmentally friendly than other gases.

The machine comes with its inlet and outlet hoses.

Feet that are not included in the machine's dimensions are provided additionally.

During installation, since the machine drains by gravity, make sure that the planned drainage is lower than the machine.

We recommend installing a filter on the water intended to supply the ice machine.
