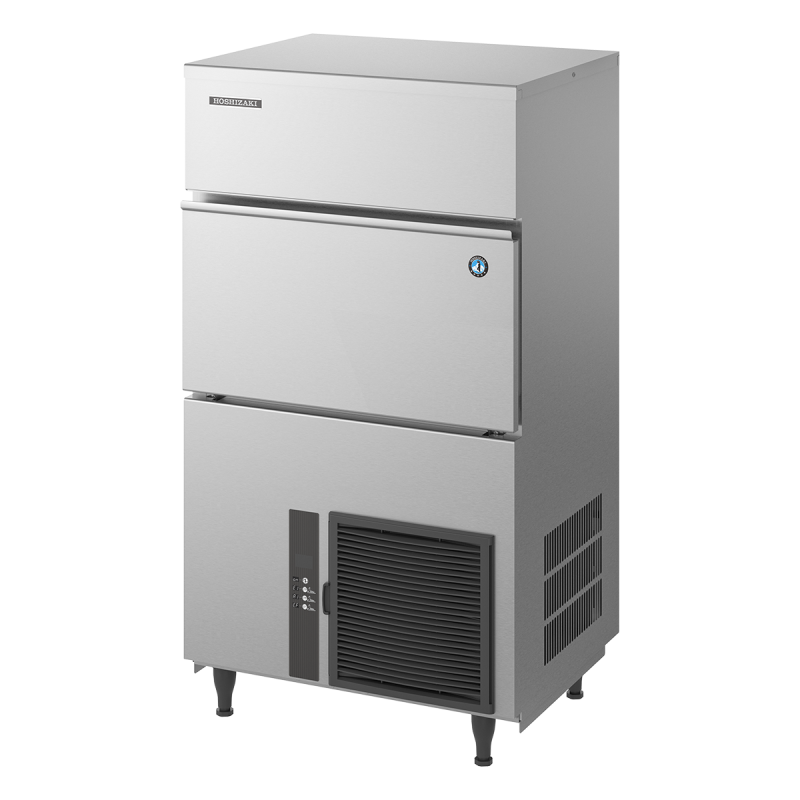

Cube ice maker 90Kg/24h (water)

This ice machine from the brand HOSHIZAKI with reference IM-100WNE-HC allows for the production of cube-shaped ice measuring 28x28x32mm, with a production capacity of 90Kg/24h. It has a storage bin capacity of 50Kg.

This machine operates with a water-cooled condenser. Air cooling differs from water cooling in that it uses air circulation to cool the condenser. For air-cooled units, it is important to ensure the room is well-ventilated to function properly. For water-cooled condensers, it is essential to connect them to a closed-circuit chilled water system. Nowadays, operating a water-cooled condenser machine on a wasted water system is not responsible.

The refrigerant used is R-290. It is important to choose a machine with R-290, as it is more environmentally friendly than other gases.

The machine comes with its inlet hose and drainage hose.

Feet not included in the machine's dimensions are delivered additionally.

During installation, since the machine drains by gravity, it is important to ensure the planned drainage is lower than the machine.

We recommend installing a water filter for the water supply to the ice machine.
